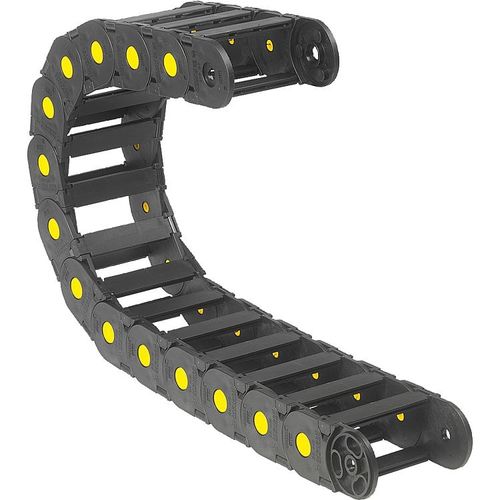

Openable drag chain80850-90 series

Energy chains, plastic inner height 45 mm, openable from both sides

Material:
Polyamide fibreglass reinforced.

Version:
Black. Openable from both sides.

Note:
Energy supply chains for safe guiding of flexible electric and data cables as well as pneumatic and hydraulic hoses. The modularly constructed chains can be easily shortened or extended.

The material is UV-resistant and therefore also suitable for outdoor applications.

Technical data:
Technical features in unsupported areas:
Speed: 10 m/s
Acceleration: 50 m/s²

Temperature range:
-30°C to +125°C.

Type : openable, snap-open
Material : polyamide
Other characteristics : simple installation, modular
Width : 122 mm, 172 mm, 222 mm (4.8 in)
Displacement speed : 10 m/s (32.81 ft/s)
