Application
Electromagnetic pumps are used to transport neutral and aggressive liquids. They feature a simple structure and excellent reliability. They have been performing brilliantly in all kinds of applications such as air-conditioning technology, oil transport technology, stage technology and also medical technology. They also offer users a wealth of important advantages in the cleaning and food industry:
• Maintenance-free
• Automatic pressure limitation
• No shaft seals
• Robust, industrial designs
• Suitable for permanent operation
• Tiny footprints
Description

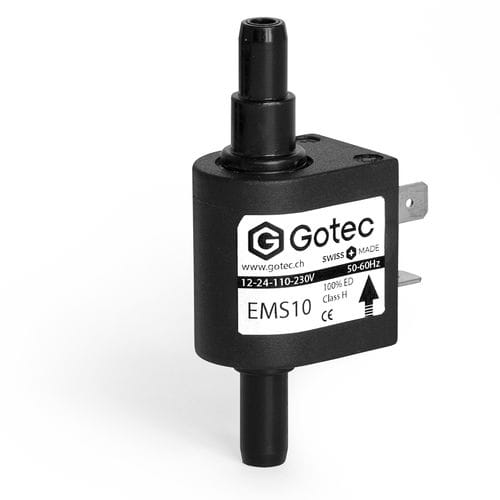

The EMS10 is a piston pump. Spring-loaded valves on the intake and output side allow the pump to aspirate easily during operation. It is possible to operate the pump not only at mains frequency, but also through frequency regulation or pulsed control.
Technical data
Max. delivery volume (l/h) – 10 (18 on demand)
Max. head height (m) – 2
Differential pressure (bar) – 1
Viscosity range approx. (cSt.) from – 1
Viscosity range approx. (cSt.) to – 600
Min. filtration (µm) – 100
Ambient temperature approx. (°C) – 1-50
Medium temperature approx. (°C) – 55
Diameter of connections (mm) – POM 8
Seals / valves – EPDM, HNBR, PTFE
Max. power consumption (VA) – 18
Weight approx. (gr.) – 95
Available voltages (V) – 12,24,110,230
Special voltages – on demand
Electrical connection – DIN-plug or cable connection
Dimensions (L x W x H in mm) – 43x23x72,9
Fluid : oil
Operation : electric
Technology : piston
Domain : industrial, medical
Applications : control, cleaning, transport
Other characteristics : automatic
Flow : 10 l/h, 18 l/h (2.64172 us gal/h)
Pressure : Max.:
