Multi-channel manifold

DELTATHERM® offers different kinds of manifolds, as standard.

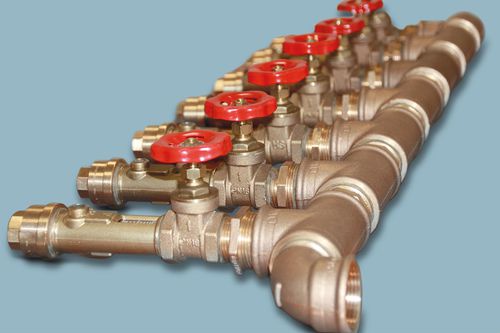

Example: 6-fold water manifold, with one balancing valve per circuit, gunmetal/brass version

Water inlet 1 1/4″ IG (for 80 l/min)
6 water outlets with gate valve and balancing valve in 1/2″ IG
Balancing valve has a ow display (mechanical) and can easily be set via a screw.
Flowrate range per circuit 4–15 l/min
Pressure max. 10 bar

Number of channels : multi-channel
Material : brass
Operating pressure : 10 bar (145 psi)
Port size : 6.35 mm (0.25 in)
