Instrument used in various industries: automobile, medical, civil construction, aeronautic, etc.

Description

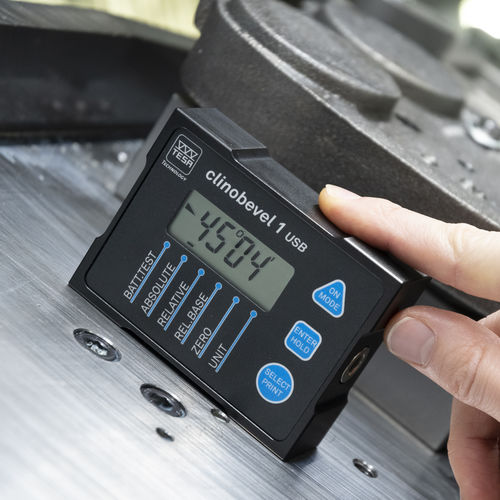

Compact universal instrument, light and robust for direct (absolute measurement) and comparative measurement (relative measurement).
Measuring range ±45° with display of measured angles or inclinations.
Reinforced aluminium housing, eloxide surface.
Large digital display for error free interpretation of readings.

Supplied with CLINOSOFT software permitting the visualisation and storage of measurements as well as the USB cable to host computer.

Specifications

Standard – DIN 2276
Maximum permissible errors – 2′ (0,6 mm/m) + 1 numerical interval
Material – Aluminium anodised
Dimensions – 100 x 75 x 35 mm
Degree of protection – IP65 (IEC 60529)
Display – LCD angle display: Decimal or sexagesimal
Inclination: mm/m, in/10 or 12 in, mm or in/basis length, radian (mrad) and the like
Weights – 520 g
Power supply – 1 battery type LRC 6, AA, 1,5 V
Function(s) – – Automatic shut down after 8 min
– Display lock
Autonomie – ≈ 150 h
Maximum deplacement speed – Response time ≈ 1s
Included in delivery – – Measuring report

Number of axes : multi-axis
Output : RS-485
Other characteristics : with LCD display
Inclination : Min.:
