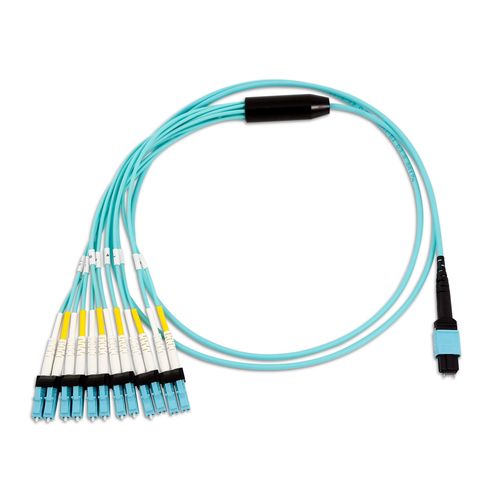

Breakout cable is used to split 12-core MTP connector terminated on trunk cable into simplex or duplex connectors. MPO/MTP connector is connected with trunk cable，while simplex or duplex connecter on the other side can provide a different fan-out length which is convenient for device connection.
Applications
Internal frame cabling，MPO/MTP adapter panels
Characteristics
High-precision MPO/MTP connector and simplex/duplex LC/SC
Factory pre-termination, 100% tested to ensure the transmission performance
Rapid configuration, reduce installation time
Rapid upgrading, support parallel transmission
Customized cable length and fan-out length
Loose tube structure, OFNR, OFNP and LSZH materials are available for outer sheath
Complied Standards
Comply with TIA/EIA 604-5, IEC 61754 series, Telcodia GR-1435-CORE Issue 2，Telcodia GR-326-CORE Issue 4 standards.
Fire resistance comply with low smoking (IEC 61304), halogen free (IEC 60754-1), flame retardant (IEC 60332- 3C), and corrosion proof (IEC 60754-2)
Cable type : MPO fiber optic
Configuration : duplex, breakout, parallel, simplex
Applications : for telecommunication networks
Other characteristics : flexible
