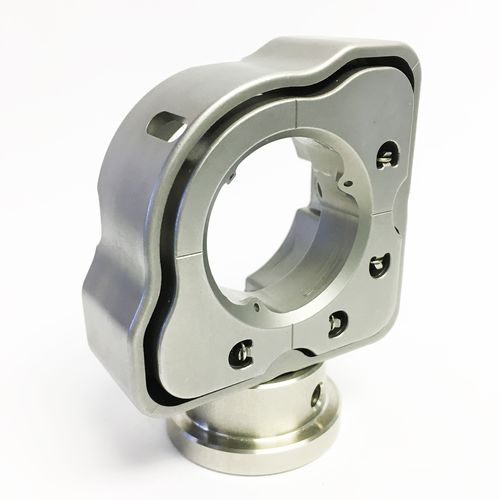

MHX-series mounts are all-stainless steel holders made for standard 12.7 (0.5-in.) and 25.4-mm (1-in.) mirrors. They feature a hollow-frame design that not only provides a higher moment of inertia to maximize stiffness but also thinner, reduced-mass sections allowing it to reach thermal equilibrium faster than traditionally designed mounts. Thermal repeatability tests validate the effectiveness of the new frame design, showing lower deflection and equivalent repeatability against rival mounts. The MHX mount is loaded with additional features like center-post mounting, adhesive wells, and keying pin slots, all in the industry’s most compact and affordable stainless steel mount.
12.7-Mm Mirror Mount, Stainless Steel, High-Stability, Front-Loading, 2 Hex Adjusters
SKU : MHX-12.7A
This mount uses a special small head diameter screw for mounting. The 6 mm counterbore is sized for a 5.5 mm head diameter socket head cap screw. An 8-32 and an M4 screw of this type are included with the mount.
Name:12.7-mm mirror mount, stainless steel, high-stability, front-loading, 2 hex adjusters
Weight:0.0360kgs
Optic Loading Side:Front Loading
Angle Range:±3°
Material:Stainless Steel
Number of Control Axes:2 points
Optic Diameter:φ12.7mm
Item Returns:This item can be returned
Products Name:12.7-mm mirror mount, stainless steel, high-stability, front-loading, 2 hex adjusters
Compatible Optics Diameter:φ12.7mm
Compatible Optics Thickness:2 – 6mm
Clear Aperture:φ11.5mm
Number of Adjustment Axes:2 point
Mounting direction:Front
Adjustment Range /Tilt:±3°
Adjustment Range /Rotation:±3°
Resolution /Tilt:About 0.8°/rotation
Resolution /Rotation:About 0.8°/rotation
Compatible Holders:-
Quantity:1
Options : for mounting
Materials : stainless steel
