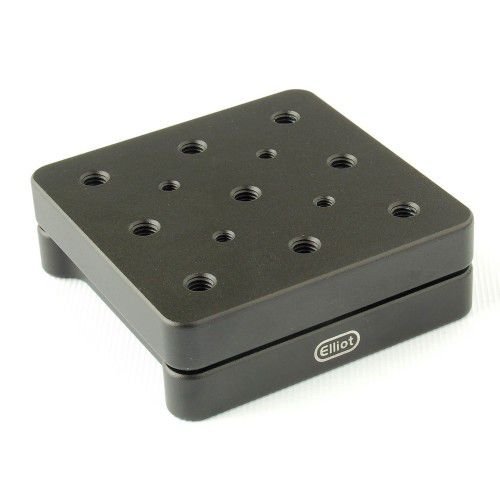

BKA301
Accurate & repeatable placement
Array of M4 & M6 mounting holes
Ergonomic design
The BK range of kinematic bases provide a removable and replaceable platform for mounting of optical components. Hardened steel balls locate in kinematic slots on the base providing accurate, repeatable placement. The plate is held in place by 4 high strength magnets.
The finger friendly design of the 75 x 75 x 25 mm (3 x 3 x 1 inch) base features rounded edges and cut-outs to allow the top to be easily removed and replaced without trapping fingers.
Mounting is by either a central M6 (¼-80) counterbored clearance hole or by parallel slots.
The top plate has an array of both M6 and M4 holes for mounting the full range of posts, post holders and optical component mounts.
Additional BKT301 top plates and BKB301 bases are available separately.
Type : motorized
Orientation : linear
Number of axes : 3-axis
Technology : line-point-plane base
Product applications : optical component
