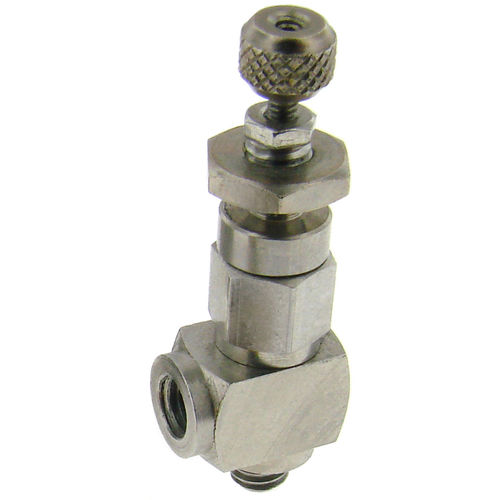

Miniature pressure relief valve

Beswick Engineering’s RV-MLS series single stage piston style pressure relief valves offer relatively precise back pressure regulation in an extremely compact package. The RV-MLS is the smallest relief valve that we currently offer, and is primarily intended for applications where space saving is critical.

Max Inlet Pressure Rating: This is a single stage regulator, and is ideal for applications with steady inlet pressures up to a maximum of 500 psig
Set Pressure Range: 5-45 psig.
Approximate Weight: 6.2g in 303 stainless steel. Weight will vary slightly, depending on configuration.
Porting: Multiple inlet port options such as tubing barbs and 10-32 threads, and a male 10-32 threaded outlet port. A cartridge/manifold mount version is also available with 10-32 external threaded outlet port, and two 1/16” (1.6mm) diameter inlet ports. See below for all available porting options.

Other characteristics : compact, piston, threaded, manual, miniature
Controlled pressure : Max.:
