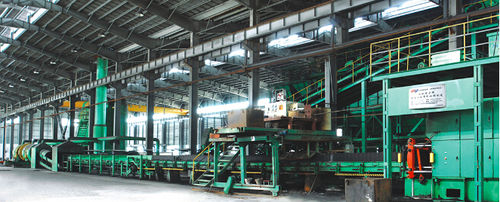

XN-ZZ416 (Vertical Parting) Flaskless Moulding Production Line

1. Scope of application: (Φ10mm-Φ40mm) casting ball,(6mm*6mm-40mm*45mm) casting segment product and quantity production of small-sized alloy liner and castings.
2. Automation of the whole production line has been improved and now it only needs about 6 workers per line.
3. The production capacity of the whole production line is strong; the average machine-hour production capacity is about 2 tons/h, six times higher than the traditional operation.
4. Independently researched and developed bottom constant-temperature casting machine is applied to the casting process.
5. The production line is equipped with dust-collecting and smoke-extracting environmental protection devices to satisfy the working environment for modern enterprises.

XN-ZZ416 (Vertical parting) flaskless moulding production line possesses many an invention and patent

1) A vertical parting casting ball and segment mould, Patent No.: 200910220919.0
2) A vertical parting casting segment mould, Patent No.: 200910116618.3
3) Vertical parting casting ball and segment mould, Patent No.: 200910116617.9

Relevant technical parameters of XN-ZZ416 (Vertical parting) flaskless moulding production line
1) Production rate (frequency), considering properties of casting ball segment product with various specifications, hourly unit production capacity is 100 boxes-180 boxes, and the contemporarily set frequency of injection moulding is about 100-200 times/h. The whole production line requires 7-8 workers.

Finished product : metal parts
Other characteristics : linear
