Metal cutting wheel

A-​Gray & Nodular Cast Iron

A1:Gray & Nodular Cast Iron​, for(HB 130-180)
​Max:3500 rpm , 250*2*32 mm
​Max:3500 rpm , 300*2*32 mm
Material:Brown corundum & silicon carbide

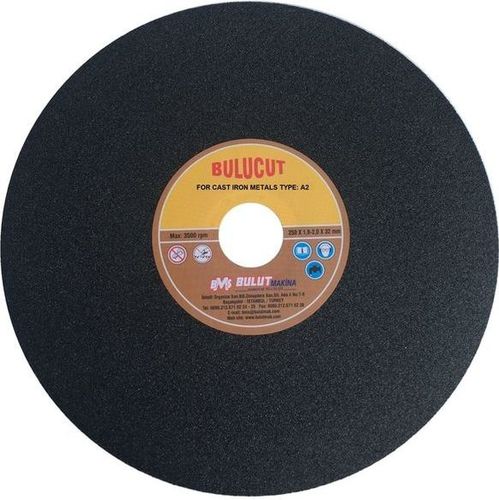

A2:Gray & Nodular Cast Iron, for (HB 180-300)
​Max:3500 rpm , 250*2*32 mm
​​Max:3500 rpm , 300*2*32 mm
Material:Brown corundum & silicon carbide

A3:Gray & Nodular Cast Iron, for (HB 300 ≥ )
​Max:3500 rpm , 250*2*32 mm
​Max:3500 rpm , 300*2*32 mm
Material:Brown corundum & silicon carbide

B-​Hardened Steel

B1:For Hardened Steel, for (30-40HRC) Max:3500rpm, 250*1,5*32 mm
Max:3500rpm, 300*1,5*32 mm
​Material:​White corundum & silicon carbide​

​B2: For Hardened Steel, for (40-60 HRC)
Max:3500rpm, 250*1,5*32 mm
Max:3500rpm, 300*1,5*32 mm
Material:​White corundum & silicon carbide

B3:For Hardened Steel, for ​(HRC 60 ≥)
Max:3500rpm, 250*1,5*32 mm
Max:3500rpm, 300*1,5*32 mm
Material:​White corundum & silicon carbide

C-Non Ferrous Metarials as Like Brass,Aluminum

C1:Non ferrous metarials as like brass,aluminum, for (HB 50≤)
​ Max:3500rpm, 250*1,5*32 mm
Max:3500rpm, 300*1,5*32 mm
​Material:​​Silicon carbide

C2:Non ferrous metarials as like brass,aluminum, for (HB 50-100)
​ Max:3500rpm, 250*1,5*32 mm
Max:3500rpm, 300*1,5*32 mm
​Material:​​Silicon carbide

C3:Non ferrous metarials as like brass,aluminum, for (HB 100 ≥)
​Max:3500 dev/dak , 250*1,8*32 mm
​ Max:3500 dev/dak , 300*1,5*32 mm
Material:Silicon carbide

D-Special Type Hardened Nodular Iron,Bearing Steel,HSS,Alloy Tool Steel,Carbon Tool Steel

D1:Special type hardened nodular iron,bearing steel,HSS,alloy tool steel,carbon tool steel, for
​(30-40 HRC) için,
​ Max:3500rpm, 250*1,5*32 mm
Max:3500rpm, 300*1,5*32 mm

Treated material : for metals
Other characteristics : diamond, steel, carbide, custom-made, high-precision
