TSM standard Inclination Sensor with 1 axis or 2 axes in MEMS technology with High resolution

Description

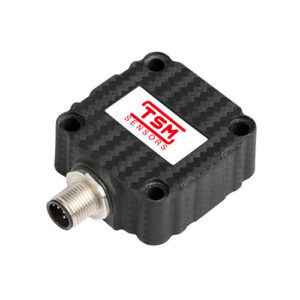

TLP100 is available with one or two measurement axes. The inclinometer working principle is based on a micro machined silicon capacitive transductor (developed with MEMS technology).

High performance, high IP rating, resistance to shock and vibrations, and high electromagnetic compatibility make this sensor suitable for mobile hydraulics applications.
Typical application are cranes, aerial platforms, drilling machines and excavators.

Various sensor enclosure designs open possibilities for many different types of applications.
The company reserves the right to make any kind of design or functional modification at any moment without prior notice.TSM SENSORS S.R.L. – Via del Lavoro Artigiano 13/15, 25032 Chiari (BS) – ITALY – P.IVA/C.F: IT03757080985TEL. +39 030 7001376 – info@tsmsensors.com – www.tsmsensors.comTLP100INCLINATION SENSORMEMS technology with High resolutionDATASHEET – Rev.3- 180120181CHARACTERISTICSMEMS technologyHigh protection level IP67 and wide temperature range from -40°C … +85°CStable accuracy over whole temperature rangeResolution up to 0,01°Single axis 0° to 360°Double axes ± 1° to ± 60°Optional redundant outputADVANTAGESSimple selection and fast installationHigh accuracy at economic pricesLong service life for outdoor applicationsCost, space and installation work savingHigh shock resistanceDifferent output

Number of axes : 1-axis, 2-axis
Output : CANopen, analog, TTL
Technology : MEMS
Other characteristics : high-resolution, rugged
Inclination : Max.:
Resolution : 0.01 °
