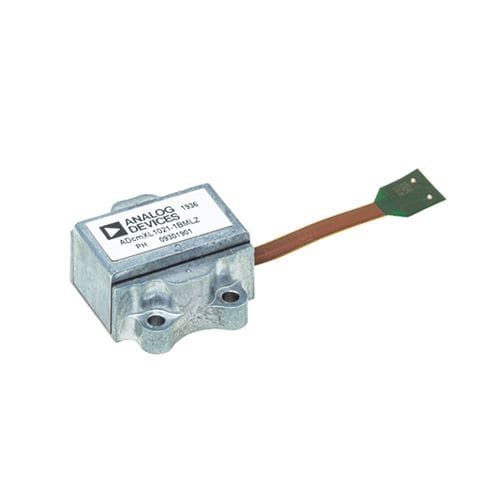

Single axis, digital output MEMS vibration sensing module
±50 g measurement range
Ultralow output noise density, 26 μg/√Hz (MTC mode)
Wide bandwidth: dc to 10 kHz within 3 dB flatness (RTS mode)
Embedded fast data conversion rate: 220 kSPS
6 digital FIR filters, 32 taps (coefficients), default options:
High-pass filter cutoff frequencies: 1 kHz, 5 kHz, 10 kHz
Low-pass filter cutoff frequencies: 1 kHz, 5 kHz, 10 kHz
User configurable digital filter option (32 coefficients)
Spectral analysis through internal FFT
Extended record length: 2048 bins with user configurable bin sizes from 0.42 Hz to 53.7 Hz
Manual or timer-based (automatic) triggering
Windowing options: rectangular, Hanning, flat top
FFT record averaging, configurable up to 255 records
Spectral defined alarm monitoring, 6 alarms
Time domain capture with statistical metrics
Extended record length: 4096 samples
Mean, standard deviation, peak, crest factor, skewness, and kurtosis
Configurable alarm monitoring
Real-time data streaming: 220 kSPS
Burst mode communication with CRC-16 error checking
Storage: 10 data records for each axis
On demand self test with status flags
Sleep mode with external and timer driven wakeup
Digital temperature and power supply measurements
SPI-compatible serial interface
Identification registers: factory preprogrammed serial number, device ID, user programmable ID
Single-supply operation: 3.0 V to 3.6 V
Operating temperature range: −40°C to +105°C
Automatic shutdown at 125°C (junction temperature)
23.7 mm × 27.0 mm × 12.4 mm aluminum package
36 mm flexible, 14-lead module with integrated flexible connector
Mass: 13 g
