Application:

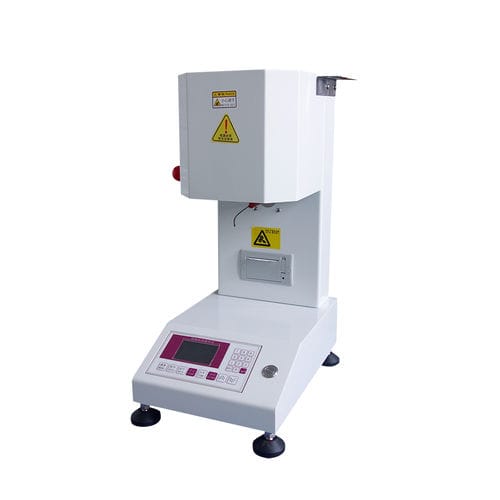

Melt Flow Index tester suitable for determining the melt flow rate (MFR) of thermoplastic plastic such as polyethylene,polypropylene,POM,ABS resin,Polycarbonate ,Polycarbonate .
Characteristics:
1.Use Industrial PLC programmable controller,LCD operation platform, single temperature unit,LED digital display.
2.Test measures: melt flow rate (MFR) or melt volume flow rate (MVR)
3.Has the temperature calibration function
Technical parameters:
ModelXNR-400B
Measuring range0.1-800.00g/10min(MFR)
0.1-800.00 cm3/10min(MVR)
Precision of temperature controlroom temperature – 450°c
Precision of temperature±0.2°c
Precision of timer0.1s
Displacement precision0.01mm
Loadfull load
Cutting modemanual, by time,automatic control
Screw barrel internal diameter9.550mm ± 0.025mm
Screw barrel length160mm
Cavity dieTungsten carbide, L 8.000mm±0.025mm, internal diameter2.095mm ±0.005mm
Power0.45 KW
Power supplyAC220V, 50Hz
Dimension400mm ×500mm ×600mm
Net Weight65kg
Options : torque, vertical, horizontal
