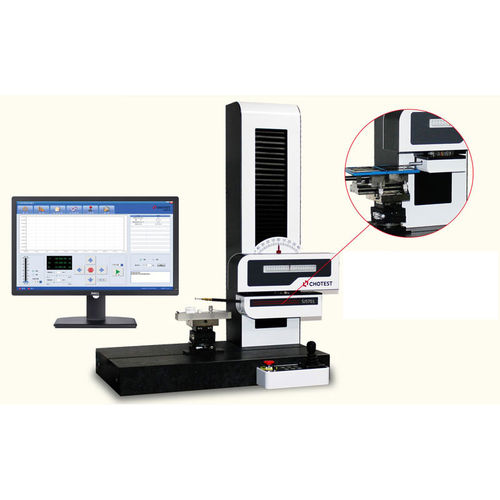

Item No.: SJ5701
Product name: Profilometer & Roughness measuring machine
X-axis measuring range: 0~200mm
X-axis indication error: ±(0.8+2L/100)µm
Z0-axis measuring range: ±25mm
Z0-axis resolution: 0.01μm
Z0-axis indication error: ±(1.6+|2H|/100)µm
Scanning speed: 0.05~5mm/s adjustable
Manufacturer: Chotest Technology Inc.

Functions
1. Surface contour evaluation: It can evaluate radius, angle, distance, coordinates, circle, circular cross section, and determine the points, each intersectant point, coordinate axis, straight line, vertical line, circle and circular cross section, and analyze the straightness, roundness of contour;
More functions:
(1)Establish a regression line and a circle
(2)Establish the points, intersectant points, free points, center point, the highest point and the lowest point
(3)Establish the coordinate system
(4)Calculate the radius, distance, angle, coordinates and linear deviation
(5)Compare actual value with nominal value
(6)The measurement program runs automatically
2. SJ5701 can evaluate surface roughness: Ra, Rz, Rt, RS, RSm, Rp, Rv, Rq, Rt, Rmax, D, Rmr curve, Rdc, etc.
3. CNC Automatic mode is supported; SPC statistics and analysis are supported
4. Support to import CAD file and annotate CAD profile.
5. Support to import PDF profile data.
6. Can export test data to the Word, Excel, AutoCAD(Optional)
7. Output multiple kinds of report format, and support user-defined report, or customize report(optional)
8. Can query and manage the test records according to object type, manufacturer, manufacturing number, inspector, submitted institution, equipment number, inspection date or effective date etc.

Technology : mechanical
Function : for angle measurement, roughness, shape measurement, geometry
Applications : industrial, for profiles, laboratory
Configuration : benchtop
Other characteristics : automatic, CNC
