Mechanical clampSO99

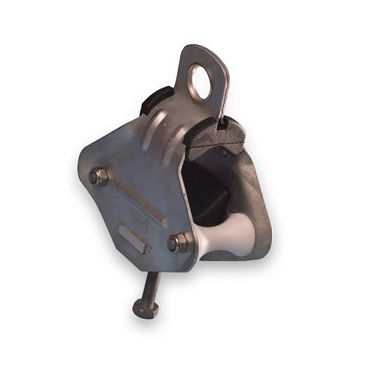

Suspension clamp
4×25-95 mm² (heavy duty with rollers)

Used for the installation and suspension of cables from poles in straight lines and angles. The body is made of hot-dip galvanized steel, and there is a stainless steel reinforced ring in the hook attachment. The integral rollers are made of plastic and inserts of weather resistant plastic. At angles exceeding 30°, the use of an additional roller set is recommended to use with the clamp.

Conductor size: – 4×25-95
Conductor diameter: – 18 … 39 mm
Weight: – 0.8428 kg

SMFL: – 18 kN
Tightening torque: – 12 Nm

ETIM Class: – EC003516

Type : mechanical
Other characteristics : stainless steel
Clamping force : 18 kN
