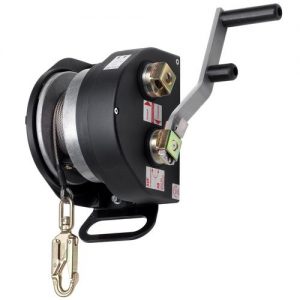

The Tiger Brake Winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate. All the mechanical components are enclosed for protection against dust, dirt and rain contamination. This equipment has a lifting capacity ranging from 800lbs to 2600lbs. The BHW is compact and lightweight yet rugged and durable.
High quality multi-purpose winch
Gears and brakes fully covered to prevent dust, dirt and rain contamination
Universal mounting plate
Finished in high quality powder coat paint offering excellent corrosion protection
Automatic load-actuated brake can hold the load in any position
Heat treated gears
3D Drawings available on full range for project planning
Compact, light-weight and rugged construction
Very low operator effort required for easy operation
For cable and strap
Operating temperature of -20°C to +80°C (temperature range of -40°C to +80°C available as an option)
Operation : manual
Application : lifting
Other characteristics : compact, rugged
Capacity : 800 lb, 1,200 lb, 1,800 lb, 2,600 lb (362.9 kg)
