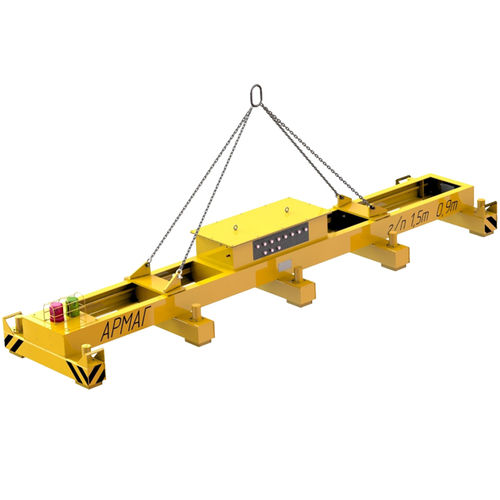

ARMAG LS magnetic spreader beam is equipped with electropermanent lifting magnets, controlled by pulse magnetization and demagnetization of magnetic systems (pulse magnets).

– Lifting single plate from a stack:
Stage magnetization mode ensures lifting single plate (from 6mm) from a stack of metal plates.

– Prevention of cargo deformation

– Energy efficiency:
ARMAG LS lifting equipment is controlled by pulse magnetization and demagnetization of magnetic systems (pulse magnets). Electricity consumption occurs only when lifting magnet is switched on and off, which ensures energy efficiency of operation: energy consumption is 95% lower in comparison with electromagnetic analogs.
ARMAG magnetic beams can be operated in such mode when not all magnets are used simultaneously, but only the necessary groups for working with loads of certain shape, size or weight.

– Load handling safety:
ARMAG LS electropermanent magnetic lifting beams guarantee reliable handling of load even in case of voltage surge, power failure or cable damage. There is no need for uninterruptible power supply sources.

– Remote control

All products are tested on test bench: confirmed guarantee of efficient operation
All lifting magnets in ARMAG LS beam are thoroughly tested on the test bench, which guarantees high degree of equipment reliability and its strict compliance with the declared technical characteristics. Products with minimum safety factor 4 * are allowed for shipment.
* Ratio of pull-off force to nominal load capacity

– Application:
– lifting and handling of metal plates;
– feeding single metal plates to cutting tables.

Product applications : industrial, for sheet metal, for plates
Power : magnetic
Options : magnetic module, electro-permanent
