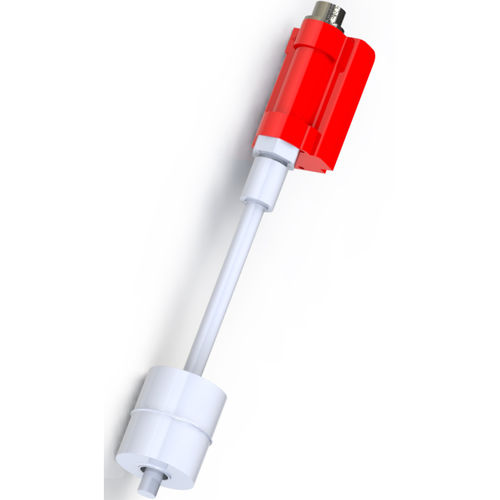

PCS III level transducers
The new transducers of the PCS III series for measuring displacement or level are rugged, accurate, without any mechanical wear among the parts, resistant to blows and vibrations and equipped with protection against hostile environments

It is possible to measure linear displacements, using a magnetic ring cursor, or fluid level, by means of a magnetic float.

Length of measuring probes from 100 to 3,000 mm
Analog outputs 0-10 V, 4-20 mA and 0-20 mA
Digital output: RS485 with Modbus and CANopen protocol
Measuring probe diameter 10 mm in stainless steel 316L
Categories: Displacement and Level Sensors, Linear, Magnetostrictive
The level transducers of the PCS III series are rugged, accurate, without mechanical wear between the measuring probe and the float, they are resistant to shock and vibrations and are equipped with protection against hostile environments.

They are absolute measure transducers – of a magnetostrictive type – with measuring ranges from 100 to 3,000 mm, which measure the position of the magnetic float compared to the probe in a fluid digitally and continuously with no friction or wear between the parts. The measuring probe, that is 10 mm in diameter, is made of AISI316L stainless steel with TIG welding, in order to make it possible to be used in the most severe operating conditions, in pharmaceutical, food or chemical applications, with working pressures in the area of 350 bar and peaks up to 700 bar.

Technology : magnetic float, magnetostrictive
Medium : for liquids
Interface : Modbus, 4-20 mA
Applications : for the food industry
Other characteristics : stainless steel, rugged
Level range : Max.:
Process pressure : 350 bar, 700 bar (5,076.32 psi)
Process temperature : Max.:
