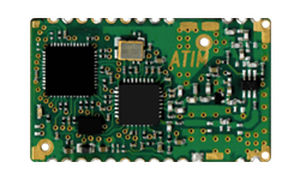

LoRa radio moduleARM-N8-LW

ARM-N8-LW : Point to gateway communication, LoRaWan technology

Strong points :
Form Factor “ARM-Nano”
LoRa radio technologie, high sensitivity (-141dBm)
LoraWan 1.0 protocol
Output power : 14dBm maxi
Link budget : +155dB
Radio baudrate from 250bps to 1200bps
UART Interface
Ultra low power sleep mode(<1µA) CMS module to solder on the card Compact design : 30mm x 18mm Functioning modes: Transparent mode RSSI reading test mode Wake-up source : 1 Digital input Configuration, update : AT commands configuration (local) EEPROM setting saving Options : LoRa
