Special high-speed sewing machine with drop feed and variable top feed

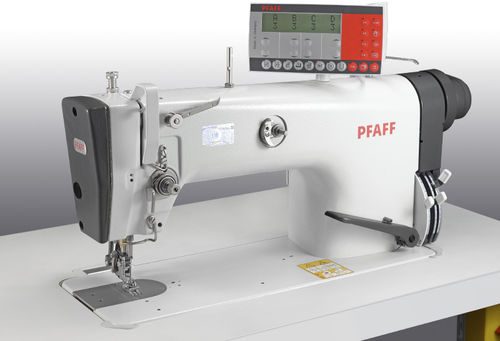

The PFAFF 487 is a high performance special-speed sewing machine with drop feed and variable top feed.
Robustness and reliability characterize the PFAFF 487 and is therefore suitable for Intergrated jobs, special operations as well as a machine for the sewing automation system.
Employed in all branches of the sewing industry
Large hook (G) with approx. 50 % more bobbin capacity than normal machines
The variable top-feed allows application of fullness and/or sewing without ply-shift
Top-feed pressure may be adjusted separately for optimum sewing of difficult materials
Floating foot for sewing difficult material using extremely low pressure, quick-adjust stepping control for different thickness of material -918/38
Double-bearings on needle bar, take-up lever and feed regulator components
Central lubrication of sewing hook and needle bar. (semi dry sewing head)
Closed gearcase with long-time lubrication pad
Lifetime sealed maintenance-free bearings
Built-in adjustment gauges for easier and faster adjustment
An additional pedal or knee switch allows variation of top feed during sewing (-918/14)
Programmable control of fullness (-918/15)
Quick-adjustment of top feed with visual indicator (-918/14)
With this device, it is possible to preselect any two top feed settings which can be recalled, by activating the knee switch.
Programmable control of fullness (-918/15)
A control unit allows preselection of various amounts of fullnes, with values ranging from 0 (plain sewing without gathering) up to 9, e.g. 6 plus values = for gathering the top ply, or 3 minus values = for gathering the bottom ply;
Stitch type : lockstitch
Number of needles : single-needle
Applications : fabric
Configuration : fixed
Options and accessories : automatic, high-speed, programmable, with large hook, drop feed
Stitch length : 5 mm (0 in)
