Nominal pressure PN: ≤ 50bar
Temperature range: -100 … +400°C
Density of liquid: ≥ 0.55g/cm3
Viscosity: ≤ 600cSt

Whether water or heating oil, whether toxic or explosive (ATEX / IECEx) – at WEKA, all this is standard.

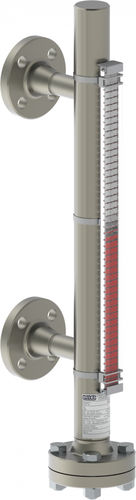

Thanks to the lying bar magnet, WEKA can offer a large number of float types for diverse parameters. On this basis, we build bypass and top of tank indicators according to the European directive (PED) or the American standard (ANSI / ASME).

Due to the magnetic principle, we are bound to non-magnetisable materials. The material group 316/316L or 1.4401/1.4404/1.4435/1.4436 and the pressure rating essentially determine the standard.

In all three pressure ratings (6 / 28 / 50 bar), EN and ANSI connections are already included as standard. Whether flange, thread or welding ends, the basic type including connections can be determined with simple pressure/temperature diagrams (p/T diagrams). Since there is the suitable float for all types, which WEKA chooses according to the process data, all that remains is the selection of the gauge bar, whose variety is available for all types.

All this is offered by the WEKA StandardLine!

With one or more magnetic switches as accessories, the fill level indicator can be upgraded to an indicator with level switches. Additionally, a transducer can be installed on the magnetic visual level indicator, in order to generate a continuous electric signal that can be evaluated in a control system.

Here, the whole range of 2 and 3-conductor devices, in normal or explosion-proof versions, and a wide variety of temperature versions are available in the standard range.

Fluid : liquid
Technology : bypass, magnetic
Applications : for tanks, for the chemical industry, for hazardous locations
Other characteristics : stainless steel, threaded, flange, top-mounted, explosion-proof, metal
