Nominal pressure PN: ≤ 50bar
Temperature range: -80 … +250°C
Density of liquid: ≥ 0.60g/cm3
Viscosity: ≤ 150cSt

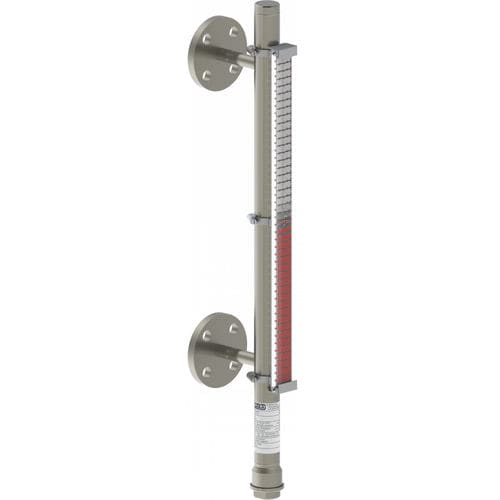

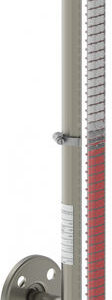

The “small, clever” magnetic level indicator for pressures up to 50 bar (5 Mpa).

In the portfolio of all our Visual Level Indicator (VLI) this is the line, for universal use in simple applications.
For reliable visualization and detection of liquid media levels in vessels where accessibility is not possible due to pressure, temperature or other reasons.

SmartLine 50 offers the best ratio of requirements to size and price on the VLI market.

Fields of application:
+ Chemical and pharmaceutical
+ Explosion-proof plants
+ Mechanical and plant engineering
+ Water management
+ Shipbuilding

SmartLine 50 – for universal use up to 50 bar and 250°C.

The version with integrated valves (34110) saves space and avoids additional work and connection points.

Tip: With the material variant in CuNi (copper/nickel alloy), we can guarantee absolute corrosion resistance in seawater (shipbuilding, submarines, seawater desalination plants).

Declarations of conformity / certificates according to CE and EAC
Declarations of conformity / certificates according to ATEX and IECEx
Shipbuilding certificates according to BV, DNV, RS and RINA

For international use, materials and connections according to ANSI/ASME standards and welding approvals according to ASME are available

Fluid : liquid
Technology : bypass, magnetic
Applications : for tanks, for the chemical industry, for hazardous locations
Other characteristics : stainless steel, threaded, flange, top-mounted, explosion-proof, metal, compact
