Nominal pressure PN: ≤ 6bar
Temperature range: -40 … +100°C
Density of liquid: ≥ 0.60g/cm3
Viscosity: ≤ 600cSt

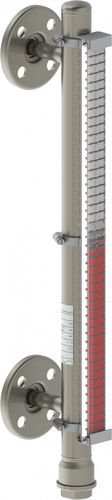

In order to be able to manufacture a favorable product for simple level measurement tasks, we use a basic range of products, allowing us to ideally organize the manufacturing process and keep the handling costs low.

The EconomyLine uses the SmartLine 50 and StandardLine 6 types, for which it is not possible to choose from all possible options. Visual level indication on containers with water or oil at low pressures and temperatures does not always require an expensive solution.

Here, EN and ANSI connections are already included in the scope of delivery of the standard version, too, but they are limited to three specified nominal sizes. The flanges are designed as loose-type flange combinations, as often used in the container building and shipbuilding industry in order to compensate manufacturing tolerances.

The restricted overall length therefore results in simplified pressure-temperature diagrams (p-T diagrams) and thus fixed categories, reducing both the testing costs and manufacturing costs. Since there is a suitable float for all types, chosen by WEKA according to the process data, the only thing left to do is to select the indication rail.

With one or several magnetic switches as accessories, the level indicator can be extended to become an indicator with limit switches.

Fluid : liquid
Technology : bypass, magnetic
Applications : for tanks, for the chemical industry
Other characteristics : stainless steel, threaded, flange, top-mounted
