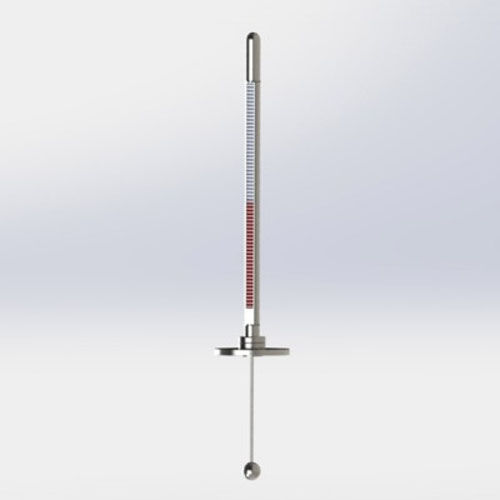

Magnetic level gauges are installed in the tanks in various ways, where it is supposed to measure the level of the liquid. The floater in the by-pass tube moves up and down with the fluid based on the principle of communicating vessels. The movement of the floater makes the bi-color magnetic

disks placed in the aluminum profile to rotate around themselves. The magnet in the floater is situated at the same level as the liquid regarding the immersion depth of the floater. Thus the bi-color magnetic disks, which colors visible from outside are changed by the floater, indicate the liquid level exactly and precisely. The color of the magnetic disks, as seen from the outside, begins to turns to red when the liquid level ascends, and conversely turns to white when it descends. In this way the liquid level in the tank can be monitored correctly. Magnetic level gauges can also be used in automation systems as a data input device. The liquid in the tank can be monitored by height of the liquid level, the volume of the liquid in the tank, etc. Using switches equipments like pumps, solenoid valves, etc can be controlled. The information of liquid level can be transmitted to the automation systems by connecting a series of reed-switches and control panel hardware to the magnetic level gauges.

Fluid : liquid
Technology : magnetic
Applications : for storage tanks
