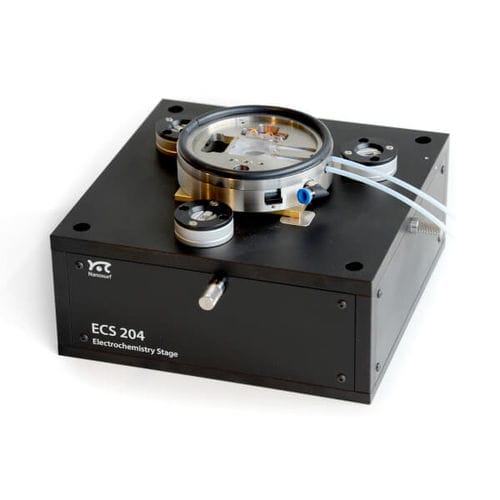

Linear stageECS 204

In situ electrochemical AFM studies
The ECS 204 allows scientists to perform simultaneous AFM imaging and electrochemical measurements (EC-AFM) on electrodes and samples immersed in electrolyte solutions.

Main features
Inert liquid cell embedded in solid steel frame
Small protected compartment for oxygen-free atmosphere above the solution
Integrated micrometer stage for lateral positioning (2 mm range)
Employs thin metal wire or true reference electrode (Ø 2 mm × 65 mm)
Mounting of flat samples or rod-type electrodes
Liquid flow-through for solution filling and exchange
Can be mounted on the Nanosurf Isostage for vibration isolation
Size: 204 × 204 × 118 mm
Weight: approx. 6 kg

Orientation : linear
Number of axes : single-axis
Stroke : 2 mm (0.079 in)
