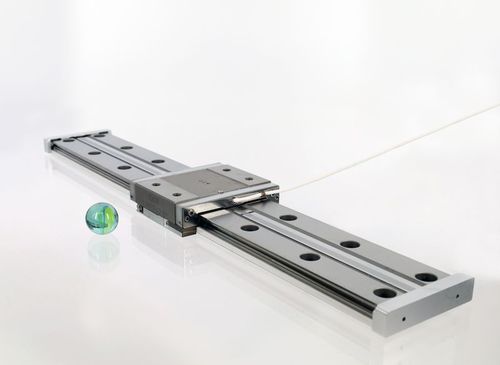

The CLL42 offers a large platform to mount the payload and features a travel range of up to 619 mm.
The CLL42 is equipped with SmarActs exchangeable drive units which guarantees easy access to the stage’s core component, the piezo-drive. That makes servicing a very simple task. It is also available in a high vacuum version. The standard versions offer travels of 99, 179, 259 and 379 mm. Special lengths are of course available on request.
Mechanical
Blocking Force [N] – ≥ 5
Max. Normal Force [N] – 30
Max. Lift Force [N] – 1.5
Dimensions [mm] – 60 x 16 (open-loop carriage)
Weight [g] – Length-dependen
Open-loop
Resolution [nm] – < 1
S)
Options
Material Options - Multiple carriages; Counterbores; Tapped holes (M4)
Orientation : linear
Type : piezo
Other characteristics : vacuum-compatible, closed-loop, standard, closed-loop
Stroke : Min.:
Speed : 15 mm/s
