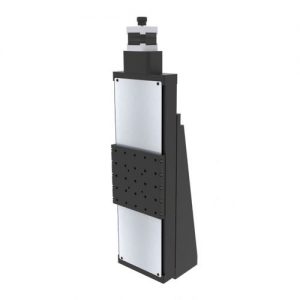

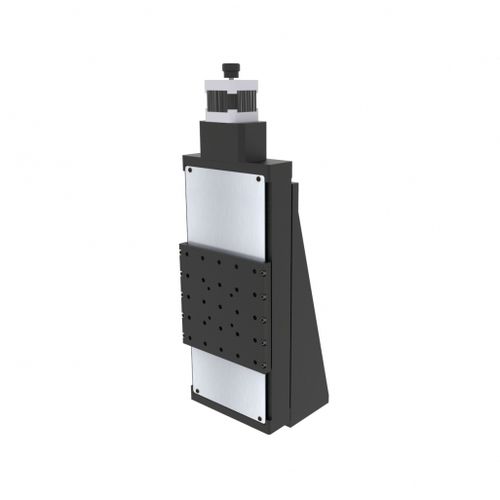

Lift linear motorized modules integrate recirculating ball bearing system with a precision ball screw in a compact frame that meets the speed and precision requirements of modern production machinery. The internal runner blocks and carriages are driven by preloaded zero-clearance ball screw/nut system. These units achieve travel speeds of up to 80 mm/sec and a positioning repeatability of 5 microns when driven with rotary stepper or brushless servo motors.
Stroke, mm 100
Mechanism motorized ball screw
Screw lead, mm 4
Repeatability, micron <5 Max speed, mm/sec 40 (stepper), 100 (servo) Load capacity, kg 8 Motor stepper, servo/encoder Stage weight, kg 3.5 Orientation : linear Type : motorized Other characteristics : precision, compact, ball screw, ball bearing Stroke : 100 mm (3.937 in) Speed : 40 mm/s, 100 mm/s
