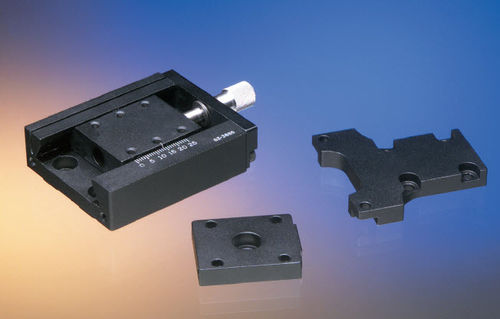

TriRail™ Dovetail Stages

• Ideal for use with TriRail™
• 1-3 axis assemblies
• Compact dovetail slide/leadscrew design
• 25 mm travel with graduated scale
• Side locking screw
• Optical Table or Rail Mounting

TriRail™ Dovetail Stages
These new stages are constructed from machined aluminum and incorporate a dovetail slide/leadscrew design. TriRail Dovetail Stages provide a low cost alternative to the more accurate MiniMech™ and MacroMech™ stages described in the Manual Micropositioners section of this catalog. They are very versatile, and allow multiple axis assemblies to be built using the hardware described below (see diagrams opposite). These multi-axis assemblies can be attached directly to an optical table via clearance holes in the stage base, or they can be
attached to a TriRail™ carrier. They can also be stacked on top of MiniMech or
MacroMech positioners.

Orientation : linear, translation
Other characteristics : dovetail
