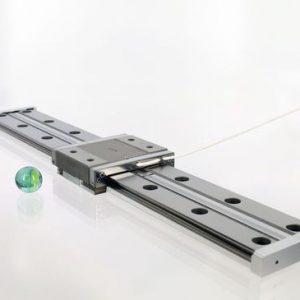

The SLC-1720 is the smallest nanometer precision linear stage in SmarAct’s SLC-17 series. At 22 x 17 x 8.5 mm, it is the world’s smallest closed-loop piezo stage with nanometer resolution and macrascopic travel range.

Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of a 1720 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact our sales team.

Mechanical

Blocking Force [N] – ≥ 3.5
Max. Normal Force [N] – 10
Max. Lift Force [N] – > 1.5
Dimensions [mm] – 22 x 17 x 8.5
Weight [g] – 13

Open-loop
Resolution [nm] < 1 Options Material Options - Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK) Mechanical Options - U-shaped base for higher mechanical strength (-W) increases width to 23 mm; increased lifetime (-Z) Performance Options - Higher blocking force (-D): +1.5 N Cryogenic Option - Yes (only open-loop) Orientation : linear Type : piezoelectric Number of axes : 1-axis Other characteristics : precision, aluminum, closed-loop, vacuum-compatible, non-magnetic Stroke : 12 mm (0.472 in) Speed : 20 mm/s
