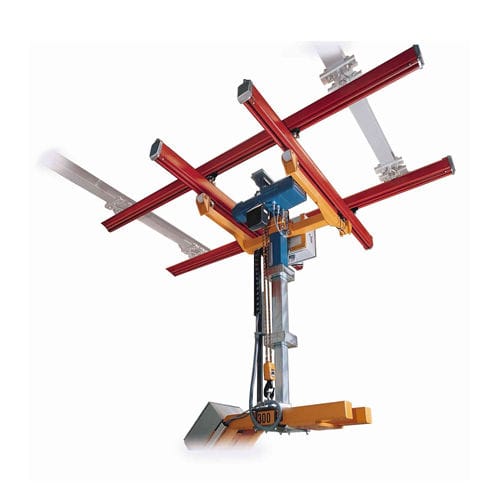

Telescoping lifting devices are moved up and down by electrically actuated chain hoists using internally or externally running chains. They are available in two different design variations: With a square column as a square telescope (TV) or with a round column as a round telescope (TR). Both versions are available as single telescopic and double telescopic.
Telescopes are especially suitable for handling heavy workpieces up to 1,500 kg. They can handle large torques of up to 5,000 Nm. The maximum available stroke is 2000 mm, depending on the version. They can be installed either in a rail system or on a floor- mounted Z-K2 heavy duty pivot arm.
With the double telescopic design, they can also be used in low ceiling rooms.
Design
•ceiling-mounted movable on a suspension crane
•floor-mounted in combination with a heavy duty pivot arm
Control options
•up/down control
•safety functions, such as gripper release
•and many more
Options
•pneum./electr. Brakes
•position scanning
•travel drive in x/y axis
•and many more
Other characteristics : with hoist, telescopic arm
Product applications : for heavy loads
Load limit : 475 kg, 1,000 kg (1,047 lb)
