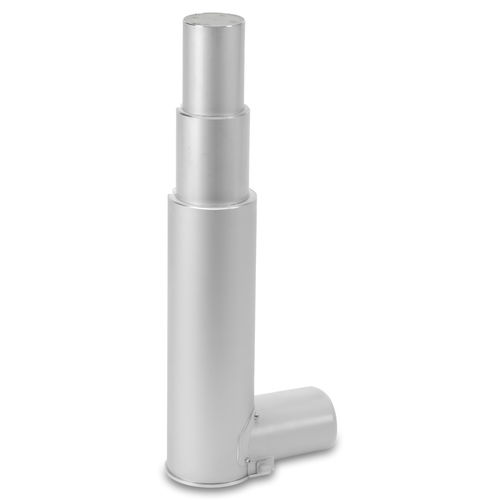

Lifting column for medical applicationsGAMMA COLONNE III

Extremely robust, quiet running. With high-quality linear guide. Optionally equipped with potentiometer. Designed for use in hospital and care beds.

• Dynamic load capacity: max. 2000 N as central load; max. 350 N at 400 mm lever arm length
• Static load: max. 1000 N at 400 mm lever arm length
• Adjustment speed: max. 14.5 mm/sec. *
• Stroke length: 400 mm
• 3-part aluminium column, 2-stage telescopic upwards, inner profiles telescope outwards

* depending on drive configuration at constant 24/29 V DC without load

Applications : for medical applications
Electrical characteristics : DC
Other characteristics : 2-stage
Voltage DC : 24V DC
Force : Min.:
Stroke : Min.:
