JQ-7050 is a new generation model designed according to market demand. It is a revolutionary process during JQ development and also stands top in the laser industry.

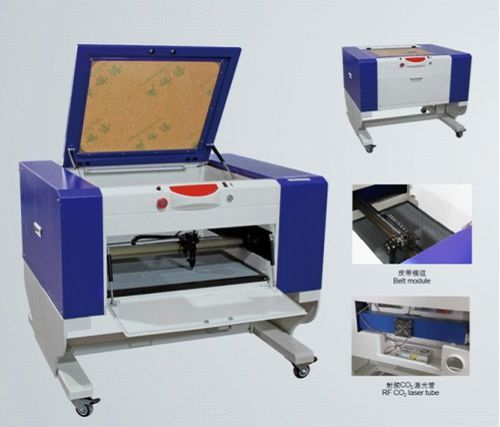

A special feature is the belt module transmission which ensures high precision and extends the lifetime of the mechaniacal moving accessories.

Features:
1. Linear guide
2. Vacuum system (filter optional)
3. Advanced design
4. Stable performance/ high-performance
5. High integration
6. Precise control
7. Stable operation
8. High-speed
9. Automatic
10. high-precision
11. Cost-effective
12. High performance-price ratio
13. Universal
14. Automatic collecting system
15. Streamlined design

Technical Parameter
–Model: JQ-7050
–Working Area: 700*500mm
–Number of axes：2-axis
–X travel: 700mm
–Y travel: 500mm
–Sizes: small/ compact
–Laser type: CO2 laser tube
–Laser Power: 60watt/ 80watt
–Driving Mechanism: Belts & stepper motor
–Positioning Accuracy: ≤±0.01mm
–Repeatability Accuracy: ≤±0.01mm
–Min. Line Width: 0.1mm
–Smallest character: 1*1mm
–Control type: CNC
–Cooling Mode: Water Chiller/ Water pump
–Power Supply Requirement: 110V/60HZ 220V/50HZ
–Continuous Working Time: 24Hours
–Equipment weight: Approximate 200KG
–Whole power consume: 1-3KW
–Max. Cutting Speed: 7000mm/min
–Max Thickness: depend on different material

Certificate：
SGS, FDA, CE

Technique : laser, CO2 laser
Material : glass, wood, fabric
Other characteristics : compact
X travel : 700 mm (28 in)
Y travel : 500 mm (20 in)
Power : Max.:
