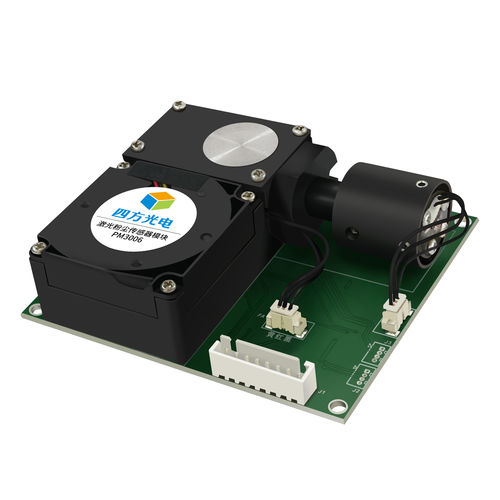

PM3006T is a linear light source-based particle sensor module with laser scattering technology. It is designed to measure the quantity per unit volume of different particle size and can output particle mass concentration PM1.0, PM2.5, PM10 in μg/m³ via mathematical algorithm and scientific calibration.

Features
▪ Patented technology intelligent identification of dust source
▪ Real-time output PM1.0, PM2.5, PM10 in μg/m3 at the same time
▪ High accuracy, high sensitivity and quick response (≤8s)
▪ Better laser diode and fan with better performance, meet -30℃~70℃ working temperature, low noise. -40℃~85℃ working temperature sensor is also available.
▪ Longer lifetime with laser diode MTTF>88,000 hours.
▪ Superior accuracy in mass-concentration sensing, better accuracy in low mass-concentration sensing.
▪ Signal output optional: UART, I²C.
▪ Constant current sampling.
▪ With voltage regulator design and EMC compatibility, strong antistatic ability.

Applications
▪ Outdoor Air quality monitoring
▪ Emissions Monitoring
▪ Construction Site Monitoring
▪ Mining Site Monitoring
▪ Port and bulk handling terminals
▪ Fence line monitoring
▪ Brownfield developments

Specifications
Measurement particle 0.3μm~10μm
Measurement range 0~1000μg/m³
Accuracy of PM2.5,PM1.0 <35ug/m3: ±5μg/m³; 35ug/m³~100μg/m³: ±10μg/m³ 100~1000μg/m³: ±10% Condition: 25±2℃,50±10%RH, Reference instrument: GRIMM Accuracy of PM10 ≤100μg/m³:±15μg/m³ 100~1000μg/m³: ±15% Condition: 25±2℃,50±10%RH, Reference instrument: GRIMM Condition：25±2°C, 50±10%RH, Reference instrument: GRIMM Time to firstreading ≤8s Type : laser
