Laser alignment systemSHAFTALIGN

Redefining the standard for laser shaft alignment. The system sets new standards within the shaft alignment entry level segment

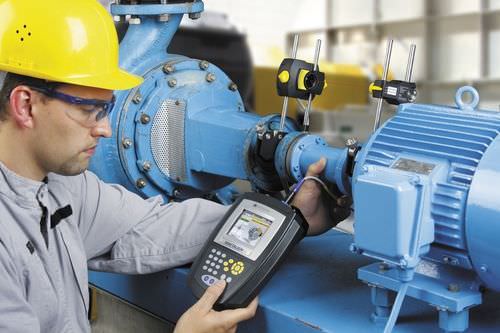

SHAFTALIGN combines simplicity of operation with precise measurement and state-of- the-art technology. Its backlit TFT colour display and the computer’s built-in display light sensor optimizes image quality and the device power management.

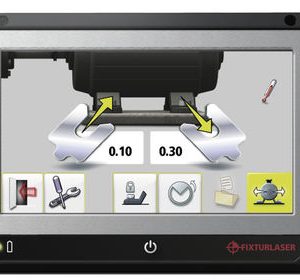

The system’s intuitive auto-flow capability guides the user progressively to determine the machinery alignment condition. The innovative “Active Clock” measurement mode collects automatically the laser coordinates for the corresponding shaft position. Only 3 to 4 readings over a rotation angle of less then 70° are required to achieve a precision alignment. All relevant alignment results are presented in one screen including the alignment status evaluation via “Smiley” and LED.

SHAFTALIGN is expandable to more powerful features as alignment requirements demand. The system offers a variety of options generating and archiving alignment measurement reports through the freeware ALIGNMENT REPORTER PC software or the direct saving of reports as PDF to a memory stick.

Technology : laser
Applications : shaft
Other characteristics : with integrated data logger
