Knife cutting machineBULUCUT-4

Technical Specifications
Machine dimensions:900x980x700 mm
Case dimenisons(coolant system included):1400x1100x850 mm
Weight (net/gross):168/210 kg
Motor:3 KW, AC,380 Volt, 3 phase,2840 rpm
Cutting system:Automatic / Manual
Table dimensions:T-slotted clamping table (370 x 173 x 20 mm) (1 pcs)
Clamping devices: Fast cam locking vises (2 pcs)
Cutting capacity:150 mm dia
Cutting wheel dim’s:250x32x1,6 mm or 300X32X2 mm
Coolant pump:380 V, 0,12 Kw
Coolant reservoir dimensions:600 x 400 x 300 mm, 57 ltr capacity

Standard Accessories
Abrasive cutter:1
Recirculation Coolant System:1
Coolant circulation hoses and clips:1
Arbow wrench and arbor pin:1
Abrasive cutting wheels:5
Abrasive cutting fluid:5lt
Clamping devices:Fast cam locking vises (2 pcs)

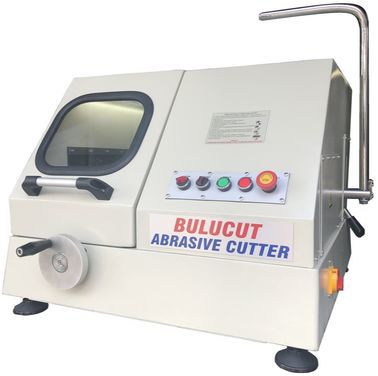

BULUCUT-3 AUTOMATIC ABRASIVE CUTTER
Metallographic sample is cut-off
machine metals, ceramic type materials and mineralssector can do the parts of a cutting instrument, practical and ergonomic.Automatic cut-off device BULUCUT – 3.steel, aluminum and so on. used for testingand analysis of samples is used to cut metal parts.Cutting-fiber plastic in the cabin in order to ensure a safe procedure, the cutting is done.Die cast aluminum with a solid structure so that the lower body of the device were obtained. To provide adequateillumination lamp in the cabin are insulated against water.

Technology : knife, abrasive water-jet
Material : for metal
Applications : metallographic
Phase : three-phase
Other characteristics : with water cooling
