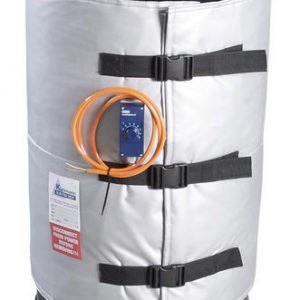

Jacket drum heater200L, Atex 230V 1050W

Drum Heaters Series Ex

Features and Benefits:
• Gentle and uniform heat transfer due to a dynamic and level depended heat emission
• Extended protection grade IP54 and hydrophobic materials
• Complete PTFE- (Teflon®) coating for a maximum long-life cycle and highest reliability against
bases, acids, solvents, etc. – free of silicone
• Circumferential (360º C) belts with adjustable buckles ensuring an optimal fitting and easy
handling
• Real 3-dimensional design for an optimal fitting and heat transfer
Technical Data:
• Nominal voltage: 115 or 230VAC, 50-60Hz
• Heating element: Self-limiting
• Power Connection: H07BQ-F, PUR coated, orange, acc VDE 0282 part 10 / HD 22.10
• Temperature Sensor: PT100 / Thermocouple
• (optional): EEx-e or EEX-i
• Surface resistance: <3*10⁵Ω/m² • Ambient Temperature: -55ºC…+50ºC • Protection grade: IP65 • Directives and Norms: Atex directive 94/9/EG • DIN EN 60079-0, DIN EN 60079-7 DIN EN 60079-30 DIN EN 13463-1 • Marking: ll 3G Ex e ll T5 Type : jacket
