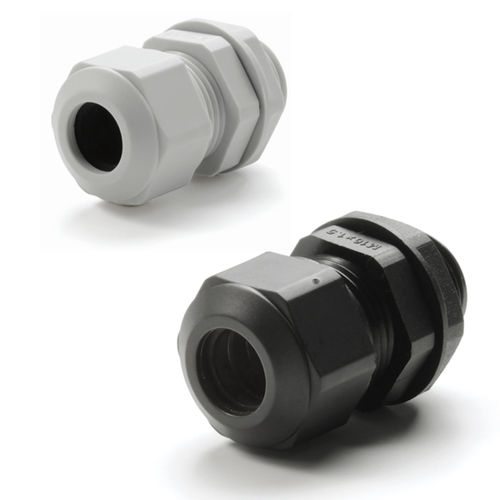

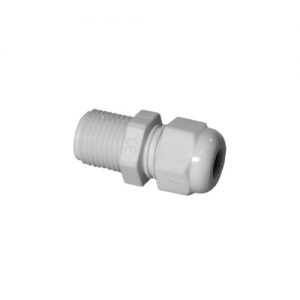

■ High water protection IP68 (1bar / 30min) polyamide cable gland.
■ Wide selection, for M8 ~ M50, suitable for Φ2.5mm ~ Φ42 mm cable.
■ Super tough and superior heat resistant PA6GF (glass fiber filled PA6) material on cap and
connector.
■ Safer halogen free, eco-friedly product.
AG Series
Thicker sealing insert evenly hold a cable by having a larger holding area.
Remains durable even after repeated tightening / loosening.
Lamellar insert type
If over-tightened, it can cause the rubber bush or cable to deform, which can allow water to seep in.
■ No optional sealing washer is required when installing on an even surface because of the built-in waterproof rib.
■ An optional sealing washer is required when installing on an uneven surface.
Material : PA
Protection level : IP67, halogen-free
Other characteristics : threaded, straight, metric
Cable diameter : Max.:
Operating temperature : Max.:
Thread diameter : Max.:
