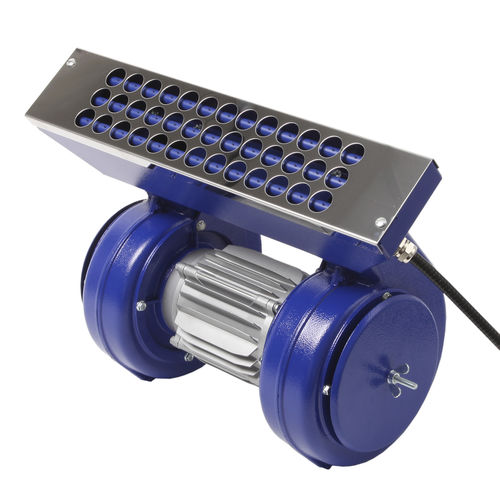

The VolumION is a very robust ionizing air blower with an effective ionising width of 500 mm. The VolumION consists of a motor, two fans and an ionisation unit. Ambient air is drawn on two sides and blown off along three anti-static bars. The air flow that is drawn in is adjustable on both sides. This ionising air blower is also ideal for long range neutralising when paper and film webs are being wound. The air inlets can be fitted with a special filter.

Working distance up to 1500 mm
Industrial motor
Easy to clean
Optional air filter

Working distance: 1500 mm max.
Working width: 500 mm
Ideal for long range neutralising when paper and film webs are being wound
Built-in shockless anti-static bars
The air inlets can be fitted with a special filter

Working distance
1500 mm max.

Working width
500 mm

Housing material
Steel, powder coating

Ionizing bar material
PVC

Emitter pins
special alloy

Cable bar
3 m metal shielded

Cable motor
3 m (Neoprene)

Weight
11 kg

Ambient temperature
0 – 50 °C

Use circumstances
Industrial

Noise level
77 dB(A) (at 1 metre)

Airvolume
50 Hz: 600 m3/h
60 Hz: 660 m3/h

U primary
400 V AC, 50 Hz/60 Hz

Power consumption
140 Watt

Option
Filter

Suitable power unit
A2A7S/MPM

Type : ionizing air
Technology : radial
Number of stages : single-stage
Applications : filter, for static charge elimination
Other characteristics : anti-static
Flow rate : 660 m³/h (23,308 ft³/h)
Nominal power : 140 W (0.19 hp)
