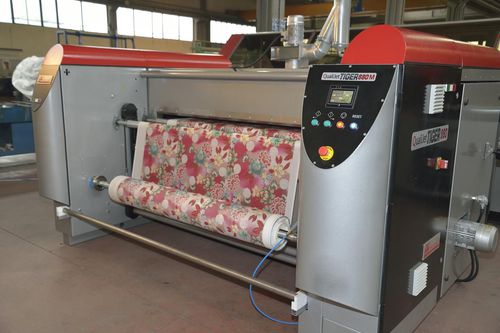

Inkjet printing machineQUALIJET TIGER 88

– Printing width 1800mm – 2400mm – 3400mm – 16 Kyocera KJ4B piezo print heads with 2.626 nozzles
– Each head with powered self alignment system
– Automatic purge cycle with cleaning station
– Drop from 4 to 72 pl – 16 greyscale levels – Print resolutions 600×600 dpi a 1,2,3,4 passes – mono & bidirectional
– Fabric transport: Twin roll unwind – Adhesive blanket – Twin roll rewind unit
– Print width, roll size Maximum print width: 180-240-340 cm – maximum fabric roll diameter: 40cm. – max weight: 100 kg
– Print speed (See attachment)
– Ink feed system: 2 x 10 Litres per colour
– Inks Acid – Certified by Kyocera

Printing technology : inkjet, digital
Applications : for textiles
Number of colors : multi-color
Other characteristics : automatic, high-speed
