. 7″ LCD with 800 x 480 Resolution
. Solid Aluminum Die Cast Enclosure
. Optional High Brightness 1000 Nit LCD
. Wide Range DC 9~36V Power Input
. IP66 Compliant Front Panel
. Available with Resistive or Projected Capacitive Touchscreen

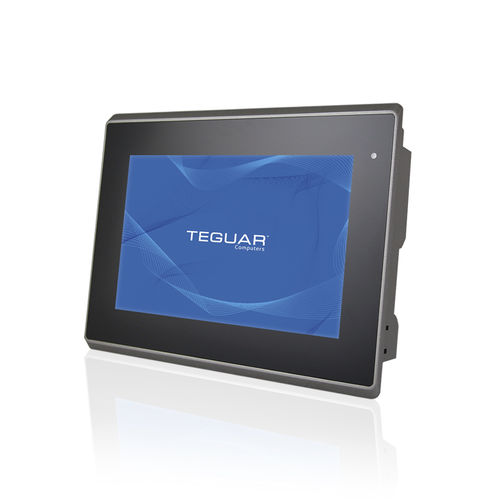

The TD-45-07 is a versatile display that can be mounted into a cutout in an enclosure or it can be mounted to an arm, stand, or hung from a surface. When panel mounted, the front bezel is IP66 rated for protection from liquids and dust. The TD-45-07 has a wide range 9~36VDC power input for applications that use their own DC voltage source. An optional AC-to-DC power supply is also available for AC powered applications. This compact display is less than 8” wide and weighs only 1 kg, and the same model is available in screen sizes up to 21.5″. This touchscreen monitor can be connected to any computer including a rugged fanless box PC or to another touchscreen panel PC, allowing multiple users to control the same computer from multiple different touchscreen interfaces.
Technology : TFT-LCD, resistive touch screen, projected capacitive touchscreen
Display size : 7″
Resolution : 800 x 480
Mounting : panel-mount, VESA mounting
Applications : industrial, versatile
Other characteristics : aluminum, high-brightness, VGA-DVI port, compact, fanless, rugged, IP66, IP69K
