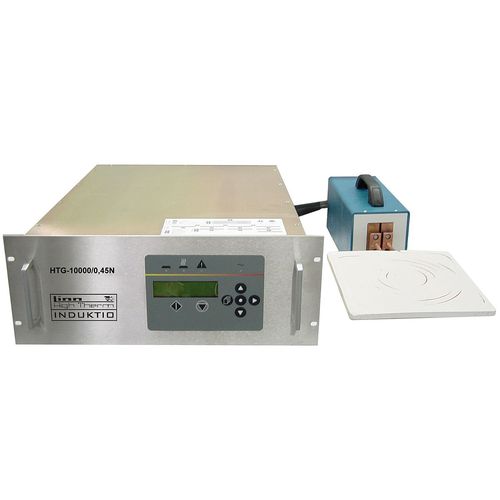

HTG-N-MODEL

TMAX UP TO
0 °C

HIGH FREQUENCY GENERATOR, 1,2 – 10 KW, 150 – 400 KHZ
Applications:
borating, calibration, casting, crystal growing, CVD chemical vapour deposition, forging, fusion, gemstone heat treatment, glueing, graphitization/carbonisation, hardening, heat treatment, levitation melting, melting, pre-heating, pulling, remelting, sample preparation for spectroscopy, shrink fitting, soldering, surface coating, tempering

Most important characteristics

High frequency solid state generators
Suitable to be used for installation in automatic machines
Light Weight
Easy to handle

We make it possible

Linn High Therm is specialized in customizing its products to customer´s needs. Please let us know if you desire any modifications.

Options

Induction coil
Temperature control unit suited for pyrometer temperature measurement
Optical pyrometer type
Additional capacitors for other inductivity ranges
Pedal switch
Serial RS 485 interface

Technical details

Resonant high frequency power supply using Power MOSFET and special frequency and power sensing technology for fast precise induction heating.

Due to the compact design the unit is especially suitable to be used in laboratories and industries for installation in automatic machines, assembly lines and machinery. Suitable for all kinds of inductive heating such as hardening, soldering annealing, welding, melting, levitation melting, even in vacuum containers.

Suitable for induction coils between 0,3 and 2,2 µH. Control unit with separate RF/HF-part (cable length 2,5 m). HF/RF-output galvanically separated from mains.

Applications : for parts assembly
Voltage : 400V
Other characteristics : portable
Power : Max.:
Frequency : 50 Hz, 60 Hz
