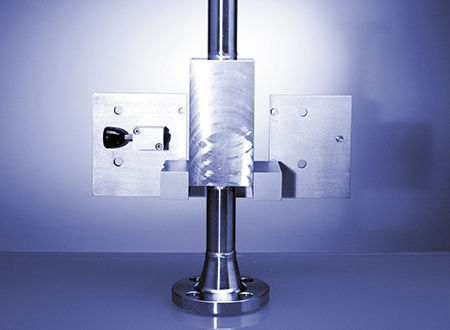

In-line flow cell

The Inline Flow Cell is directly installed in the production line. The Propol measuring unit is fixed on a mounting plate which can be flipped to the side to allow maintenance of the cell.

Key Features

Easy to install
•For connecting a Propol measuring unit
•Installation directly in the production line

Robust design for harsh industrial environments
•Adaption to your plant and application
•No influence on sterility

Technical Specifications

Technical data
TypeFlanged tube of 25, 32, 40 or 50 mm ID, with side windows
FlangesAccording to specifications
Optical lengthMin. 10 mm, max. 70 mm

Materials
Flow cellStandard: 1.4571 (other material on request)
SealsStandard: FPM (other material on request)
Optical WindowBorosilicate glass

Other characteristics : in-line
