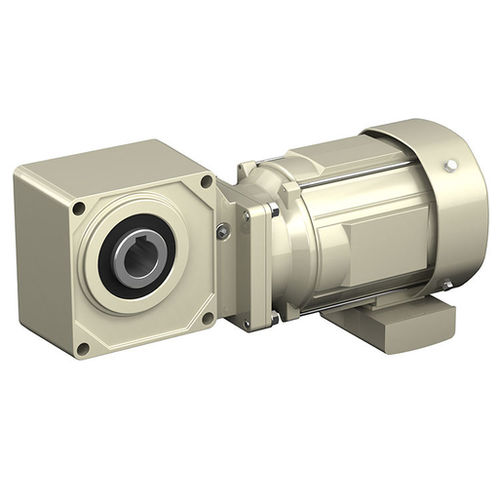

HYPONIC® Gearmotor
Right angle shaft gearmotor, with a motor range of 1/8 to 15 HP

Maintenance-free grease lubrication eliminates oil changes
A wide range of choices ( 1/8 to 15 HP ) to accommodate all types of uses.
Modular design allows for multiple gearheads and motor combinations for increased service factor.
A variety of industry packages and options are available, including grease lubrication, antibacterial coating, waterproofing, and low-temperature requirements.

Technical Info

Output Shaft – Hollow shaft, Solid shaft
Output Shaft Direction(s) – Any Mounting Direction
Mounting Style – Shaft mount, Foot mount, Flange mount
Frame Size – 12 sizes
Reduction Ratio – 5:1 – 1440:1
Capacity – 1/8 to 15 HP
Motor Types – Three phase, premium efficiency, high efficiency, for inverters, single phase, outdoors, waterproof, increased safety, compliant with overseas standards

Type : hypoid, bevel, cylindrical
Shaft orientation : coaxial, right angle
Torque : 200 – 500 Nm, 1 – 2 kNm, 500 – 1000 Nm
Performance : precision, maintenance-free
Applications : shaft, conveyor
Other characteristics : compact, modular, flange, universal, washdown, IP65, motor
Power : Max.:
