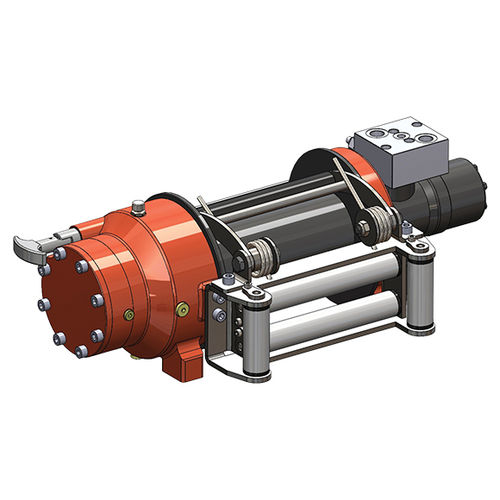

Hydraulic winchHMW 3.6 PHT-EN

Max.pulling capacity (kg/lbs): 3600 kg (7934 lbs)
Max.rope length EN 14492-1 (m / ft): 65 m (2 ft) 1960 Mpa
Recommended wire rope (mm/in): 10 mm (3/8”)
Hydromotor (cc/in3): 250 cc (15 in³)
Max.working pressure (bar/psi): 127 bar (1841 psi)
Max.pump flow (lt/min — gal/min): 60 It (15.8 gal)
Gear ratio: 5,6:1
Oil types and capacity: 85W 90 – 0,75 lt
Winch (kg/lbs): 43,5 kg (95.7 Ibs)
Roller fairlead (kg/lbs): 6 kg (13,22 lbs)
Cable tensioner (kg/lbs): 2,5 kg (5,51 lbs)

• Extra reinforced aluminium cast body through the heat treatment and industrial design
• Light and powerful design
• 100% Holding Negative-Acting Hydraulic brake system
• Standard Pressure Roller and Roller Failead
• Easy assembly, High rope capacity and High torque hydromotor
• Standard manual rope unloading system

Operation : hydraulic
Other characteristics : gear
Capacity : 3,600 kg (7,936.6 lb)
