The variable cutting angle makes this a powerful machine for large, small, thick and thin plates
Details

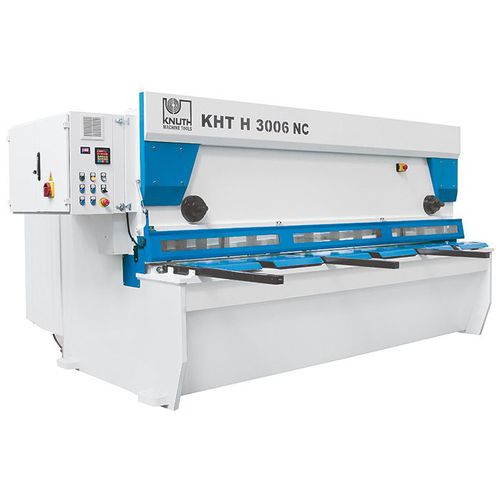

The new KHT H NC series features high machining quality and reliability, is easy to handle and provides superior cutting performance
Machine Frame
• – The machine frame is made of a high-precision, stress-relieved steel weldment and features rigid sliding block guides
• – Motorized adjustments of kerf and knife angle allow for ideal settings optimized for the sheet metal plate to be processed
• – All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
Material Support
• – The large work table features roller balls and a rigid lateral angular stop for easy handling and safe plate alignment
• – Long, sturdy support arms safely hold large plates
Hydraulics
• – Polished pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life
• – Cylinder bodies are forged from high-strength SAE 1040 material
• – During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line
Back Gauge and Control
• – Linear guides and preloaded ball screws are mounted in a protective enclosure
• – The user-friendly NC positions the back gauge precisely for single cuts or for program runs
Equipment
• – Upper and lower knives suitable for stainless steel
• – The machine is operated via a foot pedal with emergency stop switch, and the pedal can be located wherever it is most convenient
Safety
• – Safety features are based on the latest CE regulations
Operation : hydraulic
Application : for sheet metal
Other characteristics : motorized, automatic
Plate thickness : 6 mm, 8 mm, 10 mm, 13 mm (0 in)
Working length : 2,080 mm, 3,080 mm, 4,080 mm (81.89 in)
