hydraulic circuit diagram with pressure intensifier

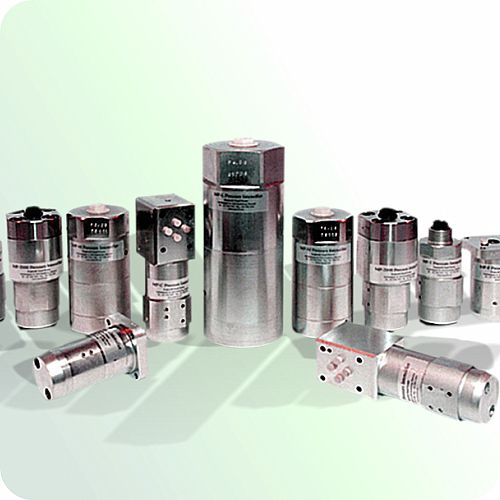

These hydraulic pressure intensifiers are reciprocating and automatically increase a supplied pressure to a higher end pressure.
Pilot operated check valves can be built in to allow high pressure side to be relieved through the intensifier.
flow / pressure graph for pressure intensifier

The supplied flow and pressure to the MP-T are dependent on the intensification ratio chosen.

The table shows the flow and pressure for each model. Flow Q1 is when the pump pressure has been reached, and flow Q2 is moving up the vertical part of the curve (see graph left).

Please note flow values will vary with the viscosity of the fluid. Inlet values must not be exceeded.

Filtration of hydraulic media is essential due to the precise tolerances built into each quality unit.

Options : hydraulic
Pressure : Min.:
Flow rate : Min.:
