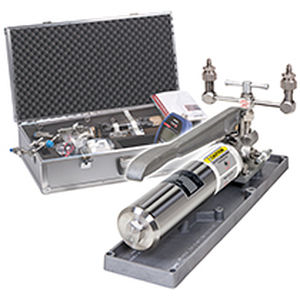

The GaugeCalHP (System G) is a portable, self-contained, hydraulic pressure generator for calibrating pressure gauges, transmitters, sensors, and safety valves. It’s much faster than deadweight testers and most automated pressure controllers; and it’s so quick and easy to use, it’s ideal for calibrating those low cost gauges that are often overlooked for ISO9000 compliance.
• Pressure to 15 000 psi / 1000 bar / 100 MPa
• Vacuum to -12.5 psi / -0.8 bar / -86 kPa
Use without fluid to generate up to 400 “H2O (995 mbar) to within 0.01 inches (0.025 mbar). Makes calibrating differential pressure transmitters easy.
• Easily test large size gauges with the unique pivoting manifold
• Quickly bleed air and capture fluid with the no mess drip tray
• Gauge-safe integral venting system prevents damage to mechanical gauges
• Use with water, light oil, or air
For details on complete pump systems click on the Options tab.
Type : hydraulic, pressure calibration
