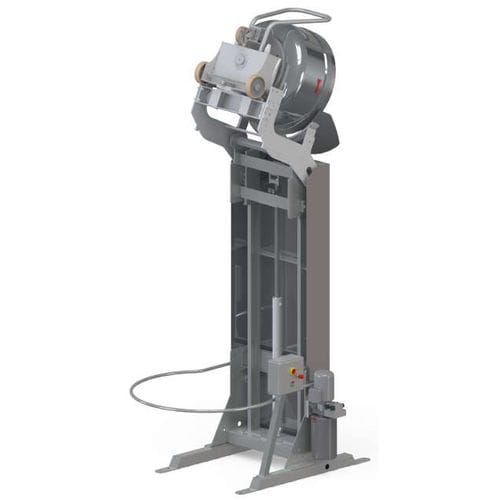

MACISTE is a tipper for bowls on wheels of spiral mixers with removable bowl. It is characterized by an electro welded sturdy steel structure with slide guides and trolley similar to the best lifting systems of lift trucks. Therefore the main characteristics are total reliability and simplicity. The lifting and the unloading occur one after the other by the use of one powerful hydraulic piston that, thanks to a double chain, makes the complete course. The lifter Maciste is produced in three versions according to the different discharge height: 1,3 m, 1,9 m and 2,6 m. Maximum lifting weight 400 kg.

Characteristics
• Structure in electrowelded steel with galvanized paths
• Safety protection ring
• Floor supporting legs in stainless steel
• Hydraulic control board at sight
• CE rules
• ETL and EAC certification
• Hydraulic lifting system with tilting

Optionals
• Safety protection cage
• Special tensions
• Customized dimensions
• Scrapers with bowl rotation
• Different bowls adjustment
• Tefloned chute

Operation : hydraulic piston
Product applications : for the food industry, for mixers, tank
Other characteristics : tilting, stainless steel, chain
Carrying capacity : 400 kg (881.8 lb)
Lifting height : Min.:
