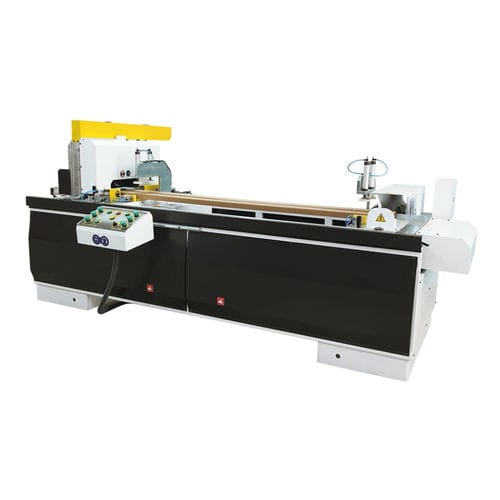

Horizontal milling machineSFR 250 J

The machine designed for door jamb double end cutting and milling for “L” place.

• The operation time is between 10-15 seconds.
• Safety clamping system is controlling by Pneumatical control.
• Capability of adjustment to max 2.2metre by manuel movement.
• Double hand controlling system
• Automatic L place milling system

Automatic cutting capability – Right / Left
Manuel adjustment for door jamb L dimension –
Door jamb cutting – Automatic
Max cutting L dimension – 120mm / Both
Max door jamb depth – 40mm
Min/max door jamb length – 600mm / 2200mm
Fixed Cutting saw – Ø 300 – Ø 250 / Ø 180 x2 piece
Movable cutting saw – Ø 350
Total power – 4 kw
Width/length/height – 1500x3300mm/150mm

Spindle orientation : horizontal
Associated function : cutting
Other characteristics : automatic, cutting, door
Power : 4 kW (5 hp)
