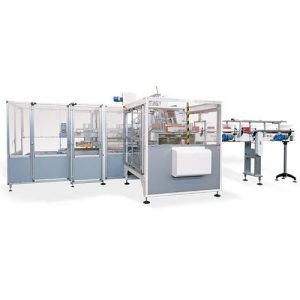

Horizontal case packerFlexLine

• A+F machine for picking sticks featuring 4 servo drives for 3D movement
• Suction gripper modul ensures reliable and gentle product handling of sticks – Venturi system creates the vacuum
• Reject system for faulty sticks
• Stacking shaft on carriage servocontrolled cycling downwards
• Servocontrolled carriage
• Gantry modul with gripper system for stacking, pneumatic gripping of piled up sticks
• Pneumatic tipping device in gripping system
• Proven A+F ModuLine case line System

Sticks packed in foil as:
• 4 single sticks / layer
• 2 two count packs / layer
• 1 four count pack / layer
• A+F System – Detection of sticks by Sensor Techology
• Rejecting faulty sticks using filler Signal

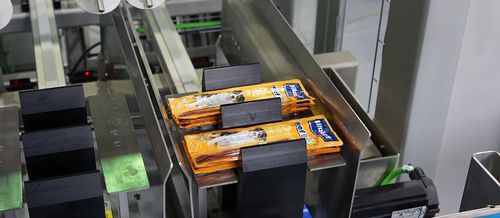

• Stacking of sticks in Shaft 1 according to pack Formats
• Moving of stacking shaft
• Removal of stacked sticks from shaft and placement in folded wrap around case
• While stacking shaft 1 is in unload position in front of the carton line, stacking shaft 2 is loaded by Flexpicker
• Magazine to hold unfolded case blanks
• Proven A+F ModuLine case linie with folding and sealing stations
• A+F Automation + Fördertechnik GmbH is your partner for turnkey EOL equipment. We also supply control, printing and other systems to complete your production lines

• Sticks packed in foil as 4 single sticks / layer or 2 two count packs / layer or 1 four count pack / layer
• Stick sizes: 235mm x 45mm x 10mm (LxWxH); 12g
• Output: 12.000 Sticks / per hour
• Flexpicker Cycle: 1,2 Seconds
• Packing of Sticks in Wrap-Around-cases
• Servo Drives by Schneider Electric
• Central lubrication possible
• Vacuum pump possible
• PETG panes in aluminium frame

Type : horizontal
Operating mode : robotic
Product applications : food, beverage, case, carton, handling
Unit throughput : 12,000 p/h
